Create State

One of the core concept of dongbao is State. State is used to define:

initial state: the initial state of you application
actions: reducer methods which generate the next state for the given payload. (If you are not familiar with the concept of reducer, action and payload, read the document of redux first)
effects: actions which has side effect(like ajax request)
plugins: will be covered in advanced tutorial

Let's see how we define them in Counter sample

Step 1: Define the StateConfig

a StateConfig is nothing but a plain js object which has the following properties on it

{
  path:"", // {string} optional: relative path for this state to root state
  initial:"", // {string} optional: initial state
  actions:{},  // {obj} optional: action definitions
  effects:{}   // {obj} optional: effect definitions
  plugins:[]   // {array} optional: plugin definitions
}

here we will only focus on initial, actions, effects, the other 2 property will be covered in advanced tutorial.

Let's add a StateConfig to our sample project. Go to "src/App.js" file, add the following code before you App component


let stateConfig = {
  initial: {
    count: 0
  },
  actions: {
    increase(state){
      return {
        count:state.count+1
      }
    },
    decrease(state){
      return {
        count:state.count-1
      }
    },
    increaseGivenNumber(state,number){
      return {
              count:state.count + number
      }
    }

  }
}

here we define the the initial state and 3 actions. The function we defined for action has the following signature:

actionFn(state,payload,error,meta)

If you are familiar with FSA, it's easy to understand each parameters mean here. The actionFn is just a sub-reducer, and it accept the previous state and payload,error,meta from action you are issue. A new state should be return from this function.

Tips: since this is a reducer function which will be internally used by redux, remember to return a new object for new state, otherwise, state might not changed. Also don't put async logic inside an action, use effect for aysnc actions

also, we don't follow the reducerFn(state,action) which used by redux, because most action don't contain error and meta with them actually, spread the parameters help write less boilerplate code.

Step 2 : Register the StateConfig

After we create the StateConfig object, we need to register it to let dongbao generate action, actionCreator, actionDispatcher for it. It's just a simple call of State(stateConfig) method


// in src/App.js

// ...
// don't forget to import Stat
import {State} from 'dongbao'
// ...

let stateConfig = {...}

let state = State(stateConfig)

The State(...) method will return an object which has ActionDispacther defined on it, you can call them to trigger create specific action and dispatch them:

// e.g. when you call
state.increse()

// it will call the following
dispatch({
  type:"increase",
  payload:undefined,
  error:undefined,
  meta:undefined
})

// when you call
state.increaseGivenNumber(number)

// it will call the following
dispatch({
  type:"increaseGivenNumber",
  payload:number,
  error:undefined,
  meta:undefined
})

// in general
// an actionFn(state,payload,error,meta)
// will generate an actionDispatcher(payload,error,meta)
// which dispatch a "actionFn" type action

Tips: you can export the return value of State(stateConfig), so that other module's can use the actionDispatcher on it, it works just like a 'service'

We have finished our state definition now, let's try to build Counter's UI

Step 3: bind state to component props

In react-redux, we can use connect(...) function to bind state to component's props. We can do the same thing in dongbao like:


// ...
import {State, connect} from 'dongbao' // import connect
// ...

// here the map function accept the state and return an obj
// which will be set as the props on App component
export default connect({
  map: function (state) {
    return {
      count:state.count
    }
  }
})(App);

As you see the connect(...) from dongbao is similar to the one from react-redux, However, dongbao's connect(...) is more powerful, you can see it in [Advanced Tutorial]

Let's update App's render() method to see our effect of binding

class App extends Component {
  render() {
    return (
      <div >
        <p>count: {this.props.count}</p>
      </div>
    );
  }
}

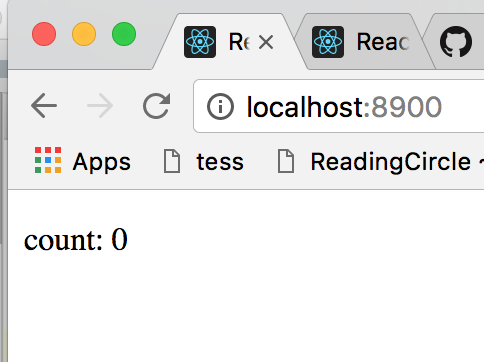

run the application with npm start you should see that the count value is update on the UI

Step 4: Build the UI

now let's add the increase and decrease buttons on the UI


class App extends Component {
  render() {
    return (
      <div >
        <p>count: {this.props.count}</p>
        <div>
          <button onClick={()=>state.increase()}>+</button>
          <button onClick={()=>state.decrease()}>-</button>
        </div>
      </div>
    );
  }
}

as you can see we directly call the ActionDispatcher methods on state obj. Turn to your project, it should works now!

Now, we already build a workable counter! In the next section, we will introduce the effect

Step 5: Add Effects

The concept of Effect is simple, let's first see a quick example

// src/App.js

// ... for stateConfig, add effects
let stateConfig = {
  initial: {
    ...
  },
  actions: {
    ...
  },
  effects:{
    increaseAfterOneSecond(){
     setTimeout(()=>{
       this.increase()
     },1000)
    }
  }
}

// ... for App component, add a new button to call the effect we add

class App extends Component {
  render() {
    return (
      <div >
        <p>count: {this.props.count}</p>
        <div>
          <button onClick={()=>state.increase()}>+</button>
          <button onClick={()=>state.decrease()}>-</button>
          // [new buttons goes here]
          <button onClick={()=>state.increaseAfterOneSecond()}>+ after 1s</button>
        </div>
      </div>
    );
  }
}

Go back to your browser and test the button you just add, it should works

Here we have several things to explain:

like action, we define effect with a name and a effectFn(payload,getState,error,meta), the State(stateConfig) method will turn effectFn into a callable function effectExecFn(payload,error,meta) which you can access from the state object returned from State(...) method use the name
inside the effectFn(...) 'this' will bind to a object has all ActionDispatcher and effectExecFn on them, this means you can compose other effects and actions inside your effects
when you call effectExecFn(...) there is no action create for it and pass to redux's reducer. So you can't directly get the current state, we pass getState() for you in effectFn(...)
if you return a Promise from effectFn, it will be return from effectExecFn when you call it. If your effectFn returns nothing, the effectExecFn also returns a Promise which is (Promise.resolve(undefined)), so effectExecFn always returns a promise. This might be useful when you compose effects together. (We will discuss this in Advanced Tutorial along with async/await keywords)

Conclusion

Great, now you finished your Counter Tutorial for dongbao. Next step, we need to introduce some advanced features of dongbao to help you build real world applications easily. Let's move to next section!
